Exploring the Versatility of Pipe Flanges: Types, Uses, and Selection Guide

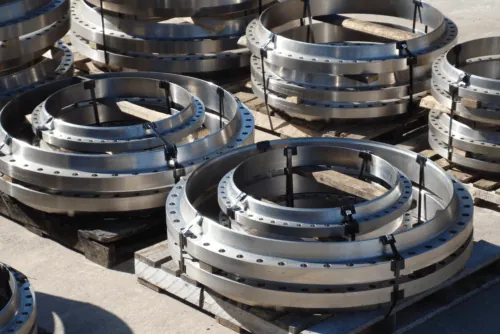

selection-guide
Pipe flanges connect pipes, valves, pumps, and other equipment to form a piping system. They are typically attached to the ends of pipes or equipment using bolts, creating a tight and leak-proof connection. These components come in various shapes and sizes to accommodate different pipe diameters and pressure ratings.

In this article, we will examine the different types and applications of flanges used in piping and the key considerations in selecting the right component.

Types of Pipe Flanges and Their Uses

The following types of flanges are commonly used in piping systems:

Weld Neck Flanges

weld-neck-flanges

Weld neck flanges feature a long, tapered neck welded to the pipe, providing strength and support, particularly in high-pressure piping applications. They offer exceptional resistance to bending, torsional forces, and deflection.

Slip-On Flanges

slip-on-flanges

Slip-on flanges have a bore slightly larger than the outer diameter of the pipe it connects to, allowing the pipe to slip into the flange. They are known for their ease of installation and are used in low-pressure and non-critical applications where welding is acceptable.

Socket Weld Flanges

socket-weld-flanges

Socket weld flanges feature a recessed area where the pipe fits, allowing easy alignment and welding. Their design creates a smooth flow path for fluids, reducing turbulence and pressure drop. It also offers a leak-resistant connection suitable for moderate to high-pressure piping applications.

Threaded Flanges

threaded-flanges

Threaded flanges connect pipes or fittings with threaded connections. They provide a more convenient method of installation and removal, making them suitable for applications where frequent disassembly is required.

Lap Joint Flanges

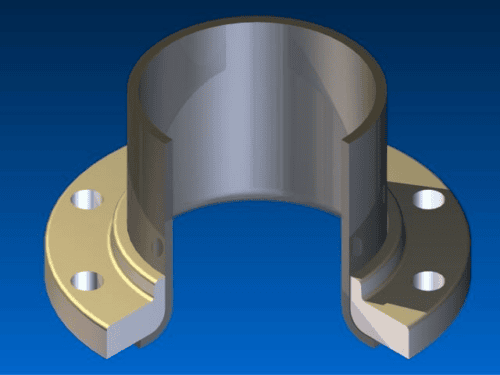

lap-joint-flanges

Lap joint flanges consist of a stub end and a lap joint ring. The stub end is welded to the pipe, while the lap joint ring fits over the stub end. This design provides flexibility in adjusting the pipe’s length and simplifies the system’s installation and maintenance.

Blind Flanges

blind-flanges

Blind Flanges are used to terminate or end a piping system or vessel. By capping off a system, maintenance or testing can be permitted within the system.

Key Considerations in Pipe Flange Selection

Here are several factors to take into account when choosing the right flange type for piping:

Operating Conditions

Temperature, pressure, and fluid type are crucial in determining the right flange type and material. For high-pressure or high-temperature applications, weld neck flanges are preferred due to their superior strength and resistance to deformation. Similarly, corrosive fluids may require pipe flanges made from corrosion-resistant materials such as stainless steel or alloy steel.

Material Compatibility

The chosen material must be compatible with the fluid or gas being transported. Ensuring compatibility enhances the longevity and reliability of the piping system and mitigates the risk of leaks, failures, and costly downtime. Therefore, thoroughly evaluating material properties is essential to making informed decisions in pipe flange selection.

Flange Standard

Different industries may require adherence to specific standards, which dictate the flanges’ dimensions, materials, and performance requirements. For example, oil and gas industry piping applications often require flanges that adhere to ASME B16.5 or API 6A. On the other hand, pharmaceuticals or food processing may require flanges made from materials that meet stringent hygiene standards.

Size and Dimensions

Properly matching the size and dimensions of the flange to the pipe helps maintain structural integrity and prevent leaks. The dimensions of the flange including its outer diameter, inner diameter, and bolt-hole pattern must align with the piping system’s specifications. Additionally, considering factors like flange face type (raised face, flat face, or ring type joint) and thickness is vital to ensure compatibility.

Cost-Effectiveness

Different flange types vary in cost due to their materials, design complexity, and installation requirements. For instance, weld neck flanges are expensive upfront but offer better structural integrity and reduced maintenance costs over time. Meanwhile, slip-on flanges are often more cost-effective due to their simple design and ease of installation.
