What is a Skirt Flange?

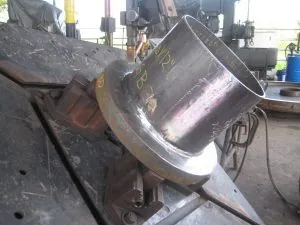

16" AWWA Class E Skirt Flange

16″ AWWA Class E Skirt Flange being welded in the positioner.

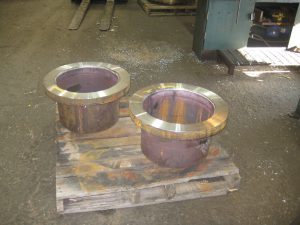

18" AWWA Class E Skirt Flanges

18″ AWWA Class E Skirt Flanges after refacing going to be drilled.

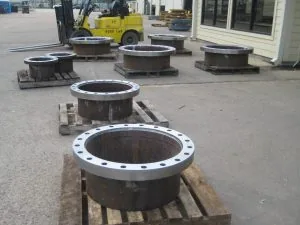

AWWA Class E Skirt Flanges

Custom Engineered AWWA Class E Skirt Flanges being readied for shipment.

Skirt Flanges are just one of the Custom Engineered Pipe Flanges we produce here at Coastal Flange. A Skirt Flange is a Pipe Flange with a short piece of Pipe welded to it for use with cement lined pipe. The Skirt Flange is lined with a Cement-Mortar mix and is applied according to AWWA C 205. The Skirt Flanges are commonly used at treatment plants and pumping stations where Flanged connections are made. Cement lined pipe was first used in 1922 in Charleston Couth Carolina by the Charleston Commission of Public works for underground potable water supply lines. Since then the Municipal Water Districts have used the Cement Lined Piping Systems for several reasons. The primary reason is the lining prevents tuberculation and keeps the water pure, it also stops discoloration and odors. When used for underground piping systems the risk of leaks is eliminated, reducing maintenance and replacement cost from pipe failure. Call us at Coastal Flange with any questions or a quote for any of your Flange needs.
